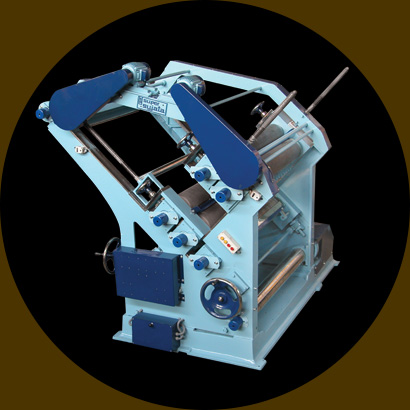

Double Profile Single Face Paper Corrugating Machine




  • Double Profile Single Face Corrugation Machine with bearing mounted rolls. Saves precious space in factory
  • Machine is supplied with two sets of any two types of flute roll
  • Immediate & trouble-free change over of fluting medium in just five minutes
  • Motorized lifting & lowering of fluting roll assembly.
  • The machine is recommended to be used on steam heating or thermic fluid heating.
  • App. output of machine is 110 rft/min.


Size Motor (H.P. Steam Req. Kg/Hr Wt Approx. (MT.) Floor Space
42" 9.0 200 5.0 7.0' x 16'
52" 11.5 300 5.5 8.5' x 16'
62" 11.5 300 6.0 9.5' x 16'
72" 14.0 400 6.5 10' x 17'
84" 16.5 400 7.5 11' x 18'
